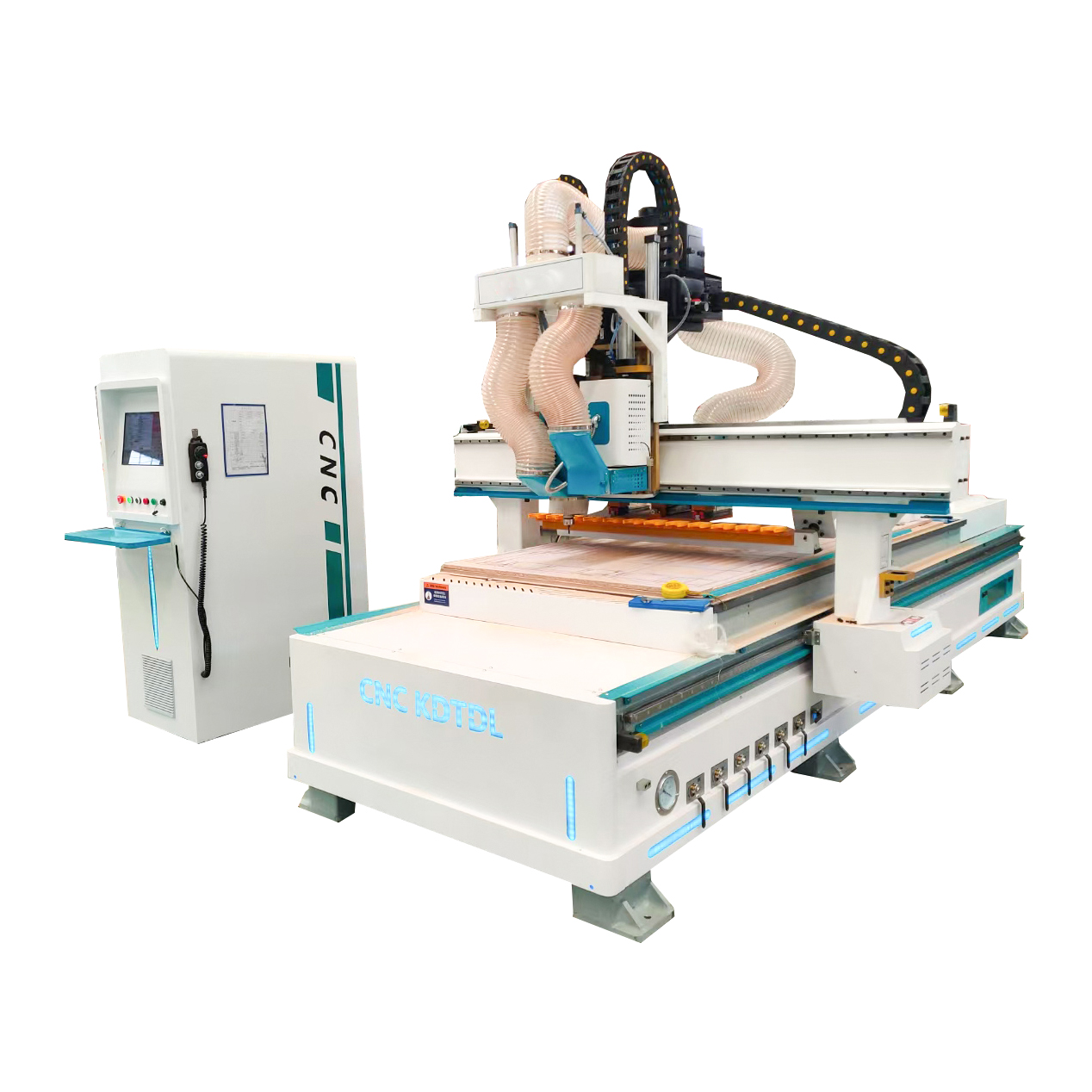

ATC CNC Router GS-ATC1325L

inquiry

SPECIFICATION
WORKING AREA	1300mm×2500mmx300mm
REPEATABILITY	0.04/300mm
SPINDLE POWER	9KW(AIR COOLING)
GUIDE WAY	LINEAR (HIWIN)
ROUTER BITS DIAMETER	Φ3.175 Φ6Φ12Φ16mm
POWER	AC380V/50HZ
MOVING SPEED	55m/min
WORKING SPEED	45m/min
TRANSMISSION	x y Axis Helical Rack z Axis Ball Screw
Spindle rotating speed	6000-24000rpm
Command	G code.u00.mmg*plt

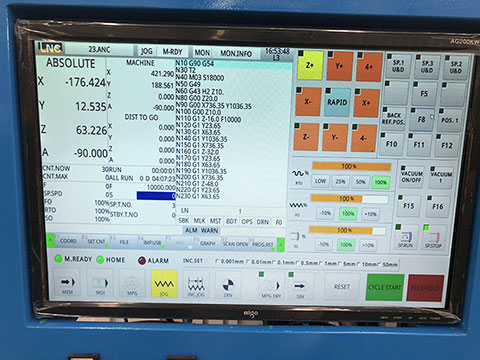

CONTROLLER	SYNTEC(LNC)

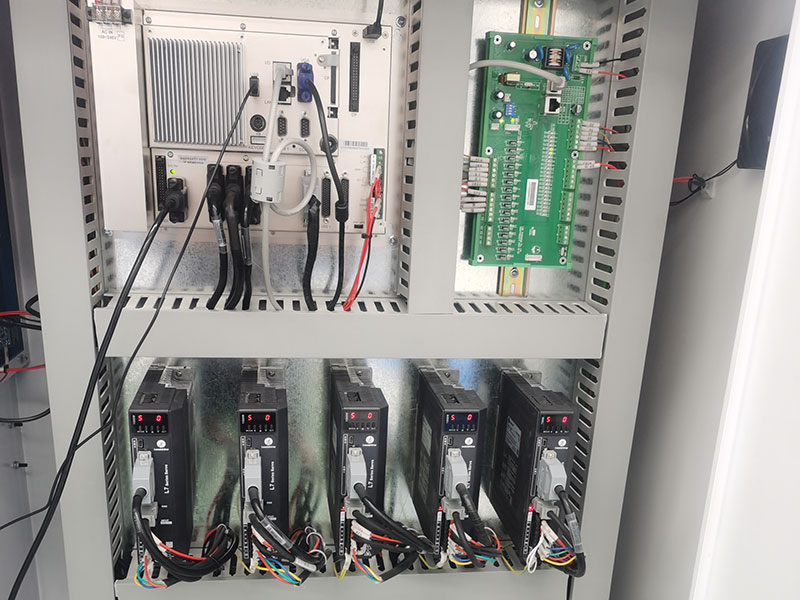

MOTOR	SERVO MOTOR (YASKAWA 850W)
ACCESSORY	Vacuum System
	Dust collector
SUITABLE INDUSTRY	6 tools chang automatic for woodworking, metal process.

◆Adopts thick steel pipe welded lathe bed, the special heat-treatment ensures minimum distortion, excellent rigidity and vigorous strength.

◆High precision TBI Gridding Grade ball screw transmission and Japan YASKAWA servo system ensures high accuracy, fast speed and good stability.

◆6Kw Italy import air cooling spindle with auto tools changing.

◆Original Taiwan Syntec system with hand wheel, convenient for positioning operation.

◆Sprayer lubrication system and automatic lubrication system optional.

Mainly used for acrylic mini letter and wood panel cutting.
